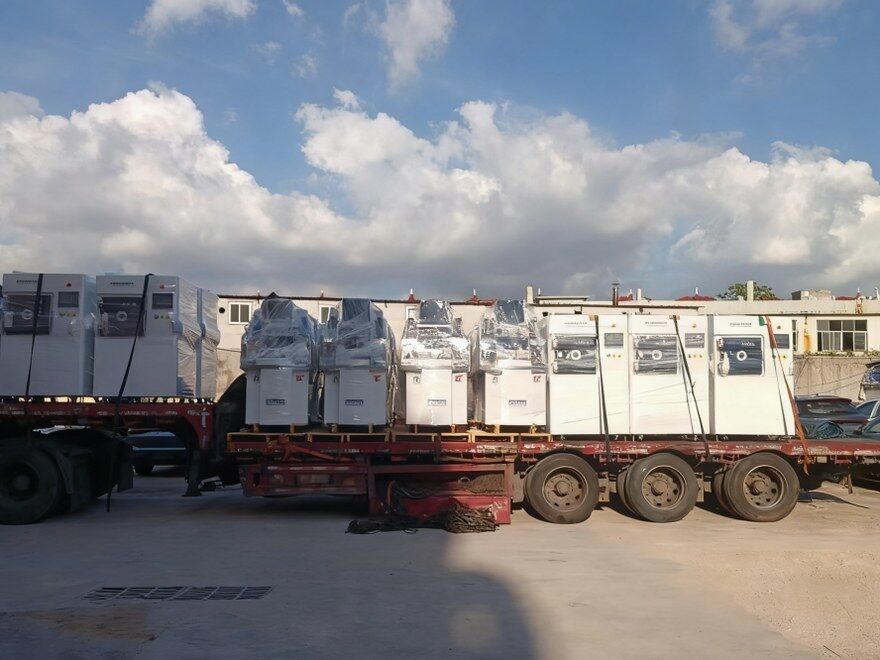

Out-of-Gauge Container Freight: Where a Load Becomes a Project

In Gauge Is a Number, Not an Impression

Container dimensions are standardised by ISO 668, and the 2020 edition fixes the external envelope: 2,438 millimetres across, with heights of 2,438, 2,591 or 2,896 millimetres depending on series. Internal room is smaller than that envelope by the thickness of the walls, and the difference matters the moment a machine has to pass between corner posts rather than sit under an open top.

The same standard also sets a maximum operating mass, which Table 2 raises to 36,000 kilograms for boxes tested and marked accordingly. So the honest definition of out-of-gauge freight is not “it looks big”. It is: any dimension of the commodity, or of the packing around it, that exceeds what the box can contain, or any mass that exceeds what the box is marked to carry.

Two corollaries follow, and both are commercial rather than technical. A load that fits inside the envelope is still a normal shipment, whatever it is made of. And a load that exceeds it by four centimetres is a different class of operation, with different equipment, different permits, and a different conversation with the carrier.

Which Boundary Does the Load Cross?

Out-of-gauge is three separate conditions, and a quote should name which one applies.

• Width or height over the box. Solved with open-top or flat-rack equipment, or with breakable bulkheads if the excess is at the end.
• Length over the box. A 40-foot unit’s problems do not transfer to a 20-foot one, and overhang at the ends is where stowage plans start arguing with the vessel.
• Mass over the marked limit. Nothing about the geometry changes; the box simply cannot be loaded where a heavy unit can, and the road leg may fail before the sea leg does.

The equipment itself is published per carrier, and the useful figures are internal rather than nominal. A typical set of current specifications looks like this:

Read the last column as a ceiling, not an entitlement: what a specific box may carry is stencilled on the door and limited further by the vessel’s slot structure and the road vehicle that collects it.

The End Posts Are a Decision, Not a Detail

Flat racks come with a practical choice nobody tells a first-time shipper about: the bulkheads either stand up or fold flat. Erected, the unit is a box with a floor and two walls and the load is contained; folded, it is a platform and anything taller than the deck height is now out of gauge in the eyes of every document downstream.

“40’FR, ends down” and “40’FR” are the same equipment name and a different operation. Declare which one the load actually needs, because the stow plan, the lashing calculation and the road permit question all hang on it.

Weight Has Three Ceilings, and the Road Leg Is the Tightest

Heavy freight is usually cleared against the ocean carrier’s limits and then fails inland. In the United States the federal thresholds on the highway network are 20,000 pounds on a single axle, 34,000 pounds on a tandem, and 80,000 pounds gross combination, with weight distributed according to the Bridge Formula rather than merely kept under a total.

The arithmetic is unforgiving. A machine whose centre of gravity sits thirty centimetres forward of where the drawing said it would move load between axles without a single kilogram being added, and an axle group over the tandem limit needs permit routing, an escort, or a different chassis — decided the week of delivery, at a premium.

So the dimensions that go into a booking are not just the commodity’s. They are the commodity plus packing plus dunnage, with the mass of each stated separately, and with the centre of gravity marked on the item itself, not only on a drawing.

Securing Follows the Ship’s Manual, Not the Crate’s Confidence

SOLAS chapter VI regulation 5 requires cargo, packing materials and units to be stowed and secured on board using a cargo securing manual approved for that vessel. The two documents the industry works from behind that rule are the CSS Code, adopted as resolution A.714(17), and the CTU Code issued as MSC.1/Circ.1497, which covers the container through its land legs as well.

For an out-of-gauge shipper this is not a philosophical point. Lashing points, lashing angles and the loads a deck is engineered to accept are the manual’s subject matter, and a securing arrangement invented by whoever tied the straps cannot be retro-approved at the terminal. Ask which manual the assigned vessel uses, who prepares the lashing plan, and whether the calculation travels with the booking or is improvised on the quay.

The Mis-Declaration Charge Exists; Get the Number in Writing

Carriers publish tariffs for cargo that arrives different from what was booked: heavier than declared, taller than the equipment claimed, or requiring the ends to be erected after a gang was planned for ends stowed. The charge is real, it is levied at the terminal where discovery happens, and it is set per the line’s current tariff schedule.

The number should come from the carrier’s published schedule for your lane, in writing, before the box is gated in — not from a memory of what a previous shipment cost. Ask one additional question that most shippers skip: whether the load will be re-measured at a different terminal on the way, since a routing change can put your cargo under scales nobody was told about.

Send This Before Anyone Quotes You a Rate

1. Dimensioned drawing per piece: length, width, height, and the mass of goods and packing separately.
2. Centre of gravity, stated as a position on the item and confirmed by the manufacturer rather than estimated from a catalogue.
3. Lifting information: weight per sling, number of pick points, and whether the item is lifted by its own structure or by a frame.
4. The road legs at both ends, with the country and the state or province named.
5. Which boundary is crossed, if any — width, height, length, or mass.

Where the answer is that nothing exceeds the envelope, the shipment is a normal booking and should be priced like one. Where something does, the five lines above are what turn a surprise into a plan, and we quote against them rather than against a photograph. Every figure in this article describes published standards and equipment specifications; current limits on a specific lane come from the carrier’s own schedule, which is the document that governs.
